Initialization

When you first add fmod addon to your godot project, you need to setup fmod options within projects parameters.
Parameters are split in several categories:
- General
- Software Format
- Dsp
- 3d Settings

General

  • "Auto Initialize": If true, will start fmod on engine startup.
  • "Channel Count": Maximum number of Channel objects available for playback, also known as virtual voices. Virtual voices will play with minimal overhead, with a subset of 'real' voices that are mixed, and selected based on priority and audibility. See the Virtual Voices guide for more information.
  • "Live update": Enable live update.
  • "Memory Tracking": Enables detailed memory usage statistics. Increases memory footprint and impacts performance. See Studio::Bus::getMemoryUsage and Studio::EventInstance::getMemoryUsage for more information. Implies FMOD_INIT_MEMORY_TRACKING.
  • Default Listener count: set max listener count (should be between 1 and 8).
  • Should Load by Name: If true will load events and parameters by name instead of id when using fmod nodes.

general-tab

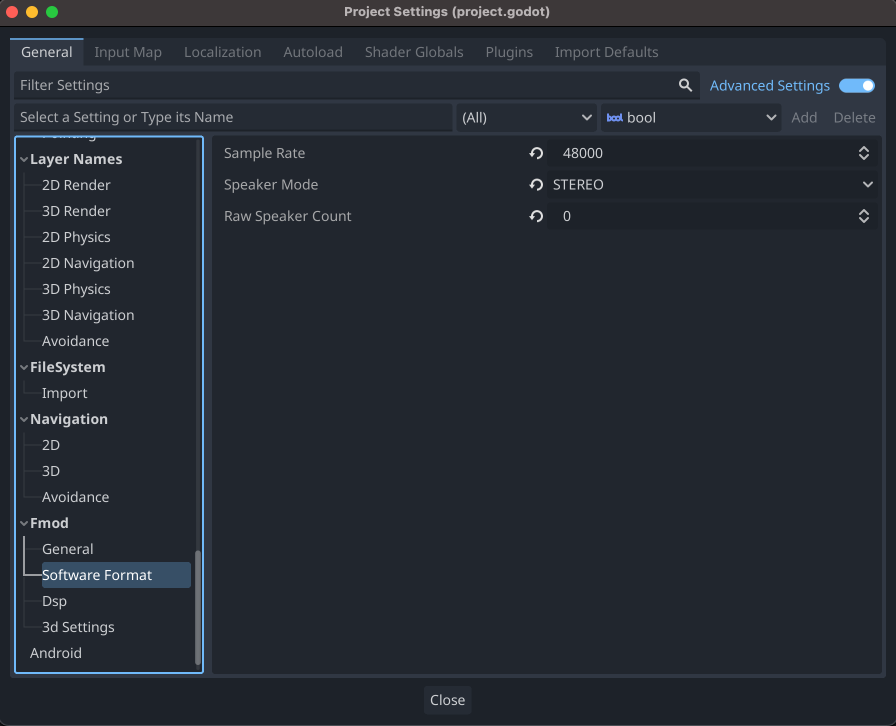

Software Format

software-format-tab

Dsp

  • "Dsp Buffer Size": The mixer engine block size. Use this to adjust mixer update granularity. Units: Samples Default: 1024
  • "Dsp Buffer Count": The mixer engine number of buffers used. Use this to adjust mixer latency. Default: 4

dsp-tab

3d Settings

  • "Doppler Scale": A scaling factor for doppler shift. Default 1.
  • "Distance Factor": A factor for converting game distance units to FMOD distance units. Default 1.
  • "Rolloff Scale": A scaling factor for distance attenuation. When a sound uses a roll-off mode other than FMOD_3D_CUSTOMROLLOFF and the distance is greater than the sound's minimum distance, the distance is scaled by the roll-off scale.

3d-tab

Fmod explorer

When all is setup you can explore your project's banks using Fmod Explorer.
fmod-explorer
